Turf Storm XL & Turf Storm

THE REAL DEAL FOR SERIOUS CHEMICAL APPLICATIONS

Looking to expand your lawn care offers? The Turf Storm XL and Turf Storm are ready to help you handle any job. With a 220-lb spreader capacity, 60-gallon sprayer capacity and an 8-ft spray boom, the Turf Storm XL can handle even the largest jobs. Conversely, the Turf Storm, with its 120-lb spreader capacity and 30-gallon sprayer capacity, is ideal for working on smaller residential properties. And, its 35.5-inch width (65-inch boom folded in) lets it fit through any standard gate. A 75-foot hose reel (Turf Storm XL) or 15-foot hose reel (Turf Storm) allows you to reach tough spaces.

Actual product may differ from photos.

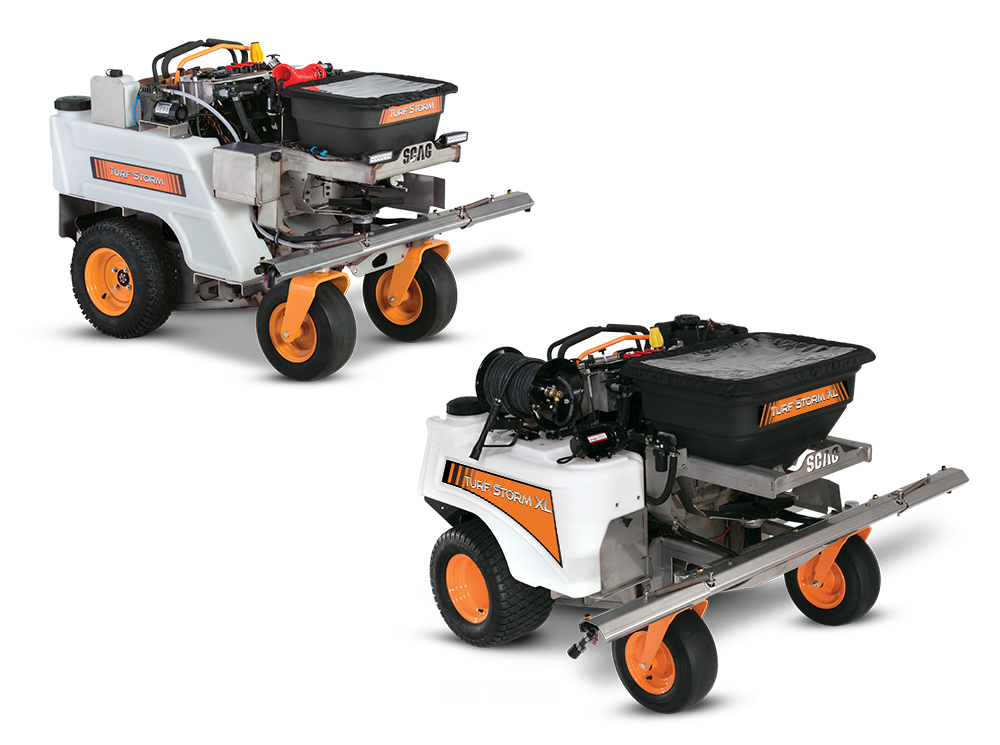

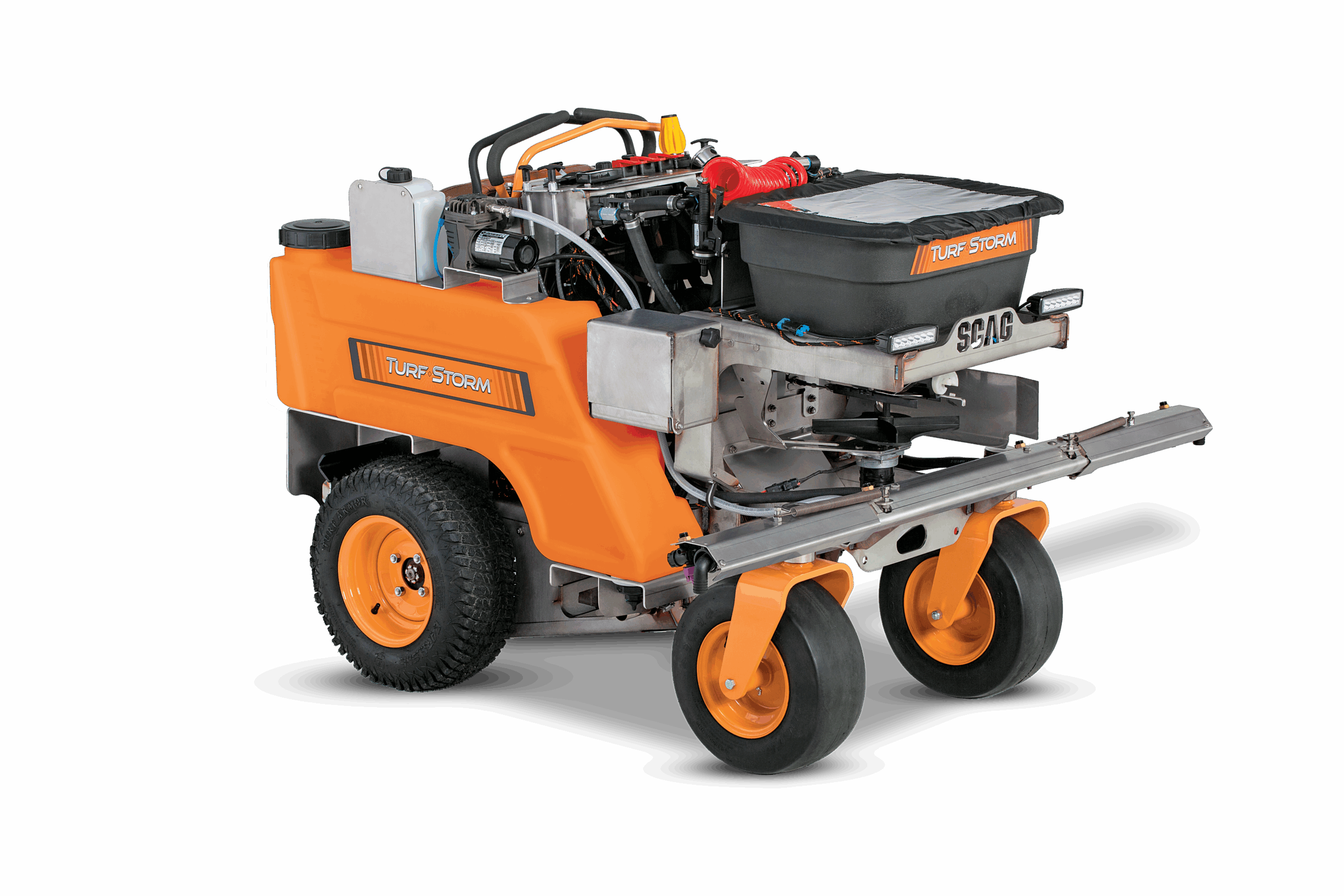

Turf Storm and Turf Storm XL
Turf Storm and Turf Storm XL Logos

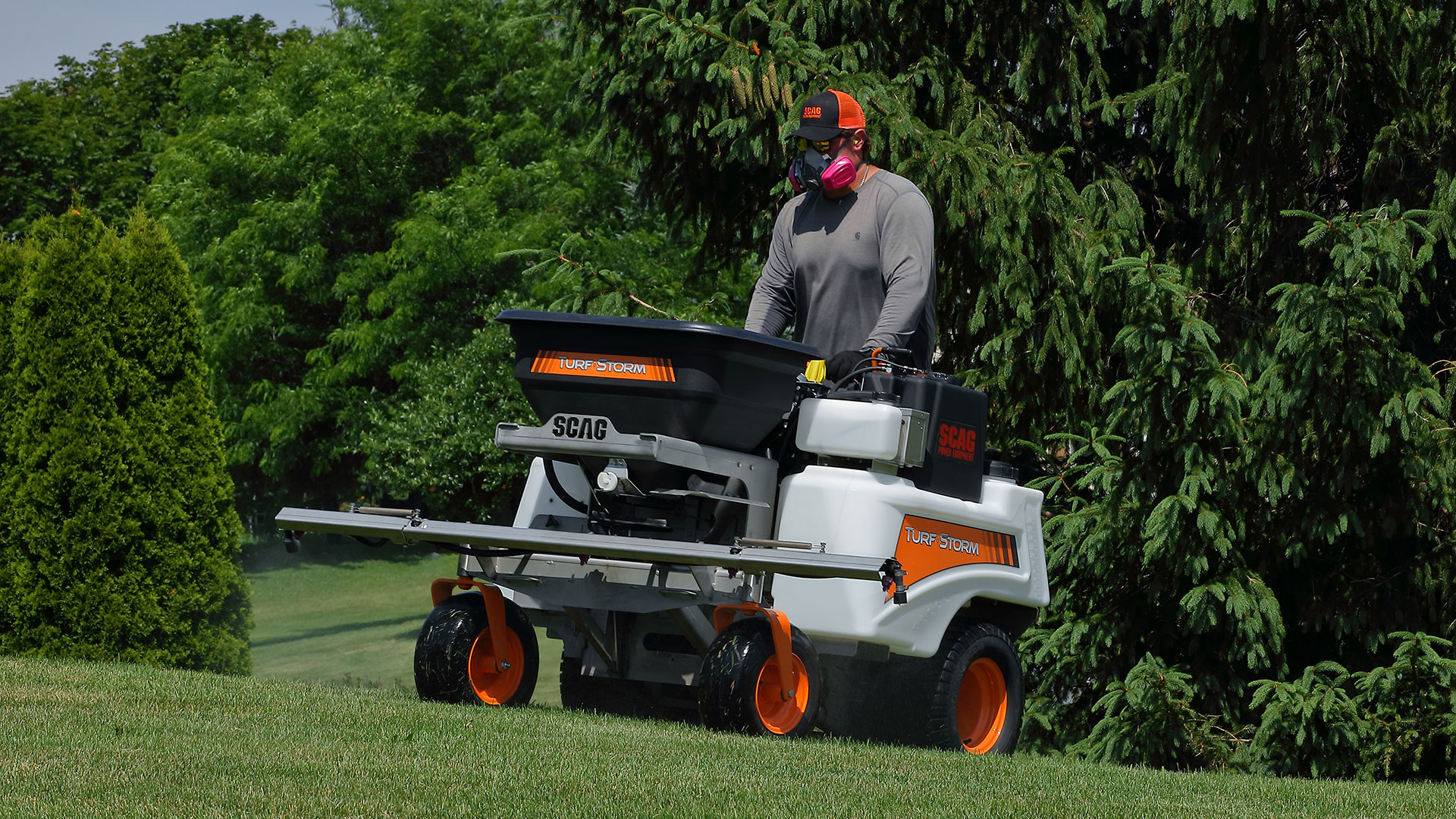

Watch the scag Turf Storm Video
Play Video
Dual Liquid Tanks

Large Liquid Capacity

60-gallon (Turf Storm XL) or 30-gallon (Turf Storm) total liquid capacity keeps you spraying longer. Highly translucent tanks with raised measurement indicators allow for accurate fill levels. Spray booms measuring 8-feet-wide with five nozzles (Turf Storm XL) or 65-inches wide (Turf Storm) allow for spraying widths of 2, 6, 8 or 10 feet (Turf Storm XL) or 2, 6 or 8 feet wide (Turf Storm). A 75-foot hose reel (Turf Storm XL) or 15-foot flex hose (Turf Storm) allows you to reach tough spaces.

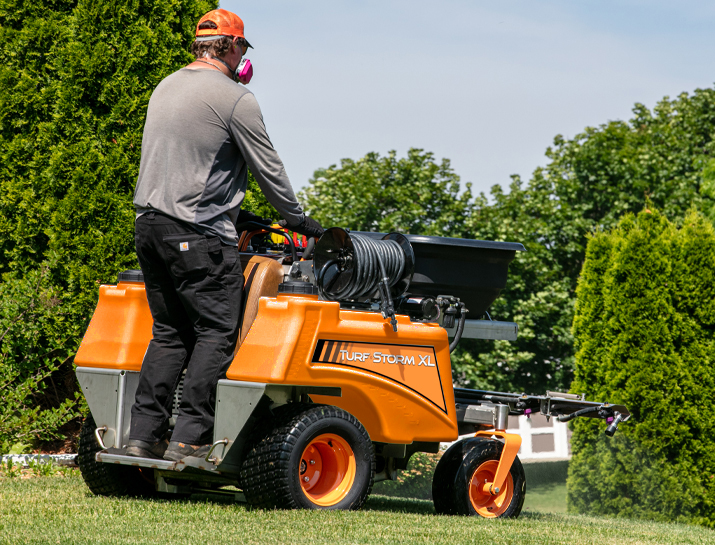

Turf Storm XL shown



Man riding a Turf Storm XL

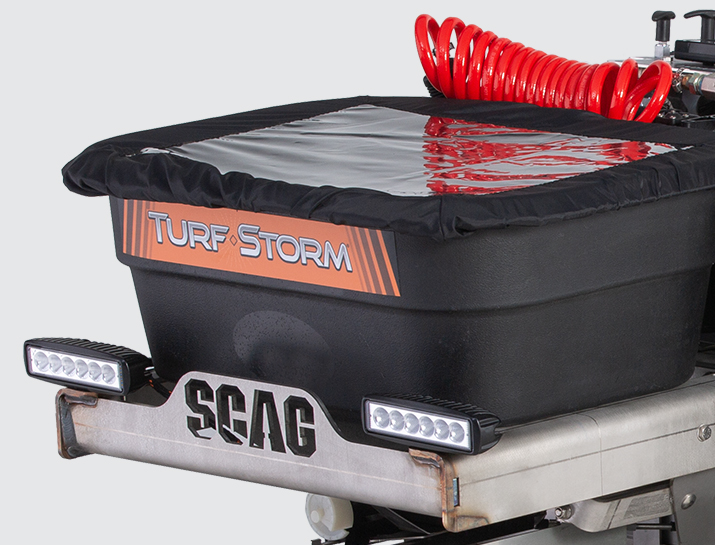

Spread up to 25 Feet

Large Hopper Capacity

The 220-pound hopper (Turf Storm XL) or 120-pound hopper (Turf Storm) dry/granular capacity paired with a high-torque electric spreader motor help deliver up to a 25-foot spread width.

Turf Storm shown



Large Hopper Capacity

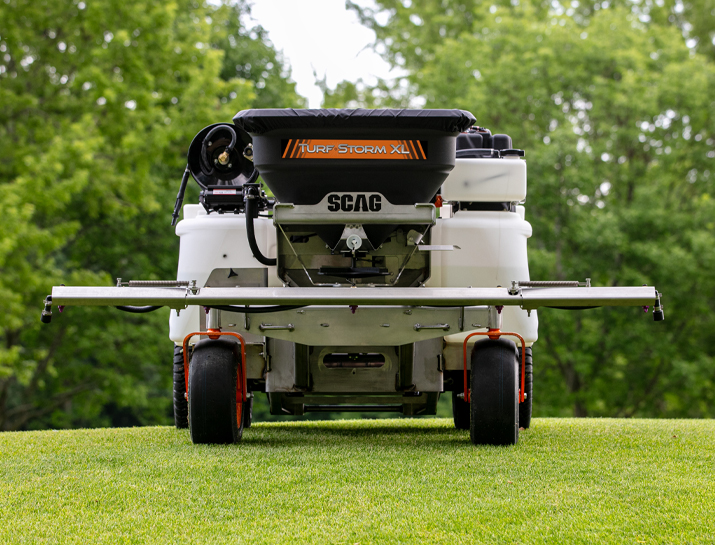

Wide Stance for Optimum Maneuverability and Stability

Dynamically Balanced

The dynamically balanced machine ensures sure footing, eliminating the need for locking front casters (Turf Storm XL only).

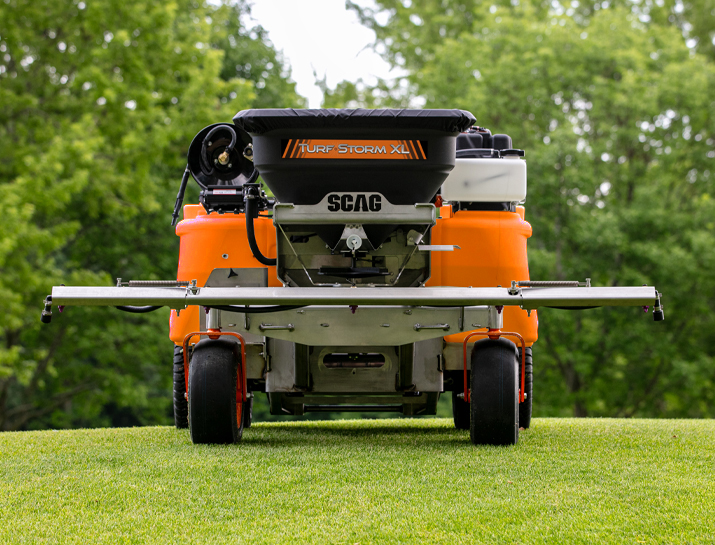

Turf Storm XL shown



Turf Storm XL
Ease of Use and Maintenance

Quick and Efficient Drain Plug

Drain plugs at the lowest part of the tanks allow for quick and convenient tank draining and cleaning in between the uses.

Turf Storm XL shown



Convenient Drain Plugs
More Accurate Application Pattern

High Torque Electric Spreader Motor

The high torque electric spreader motor reduces system heat when compared to hydraulic spread motors used in the market place. As a result, you can more easily control your spread pattern resulting in a more accurate application of the granular products.

Turf Storm XL shown



High Torque Electric Spreader Motor

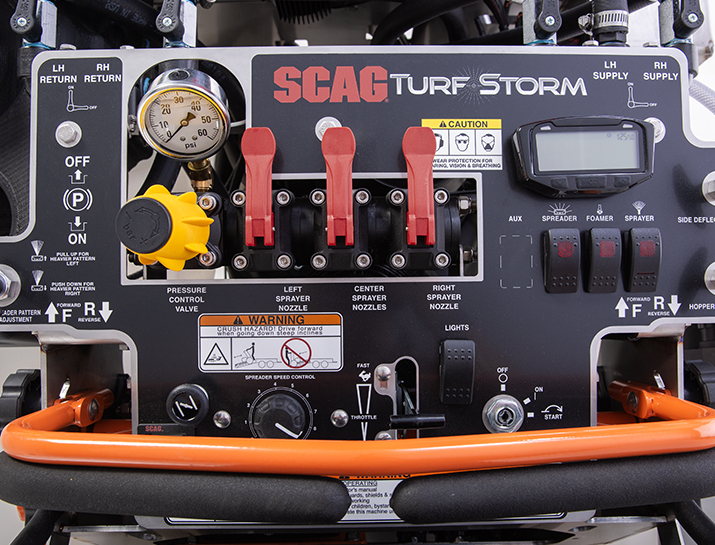

Finger Tip Controls

Ergonomic Operator Control Station

The ergonomic drive control lever design provides incredible ease-of-use. All the spreader and sprayer controls are within easy, fingertip reach.

Turf Storm shown



Finger Tip Controls
Maximize Comfort

Spacious Operator Platform

The spacious operator platform features an extra-large operator comfort cushion paired with coil-spring suspension for a smooth ride.

Turf Storm XL shown



Spacious Operator Platform
23hp Vanguard Engine

Powerful and Efficient

23 horsepower Briggs Vanguard® engine delivers ample power, along with exceptional efficiency and dependable performance. 50-amp charging system ensures dependable spreader operation, battery life and power to accessories like 7gpm pump, Lights & Foam Marker.

Turf Storm XL shown



Vanguard Powered Turf Storm

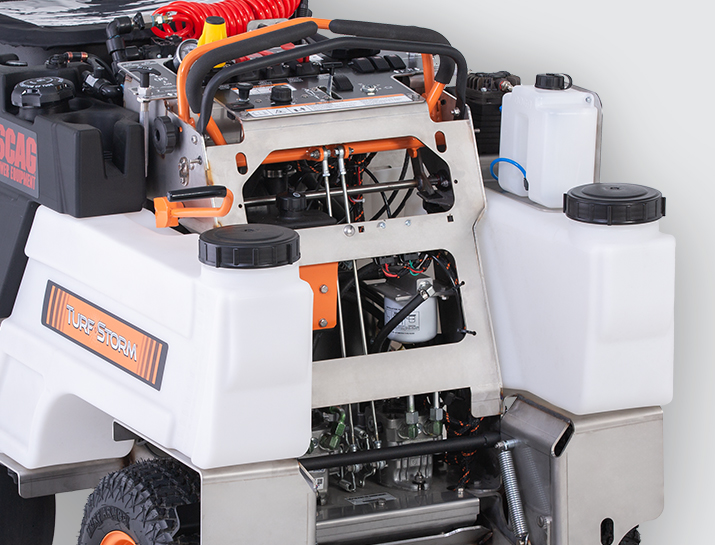

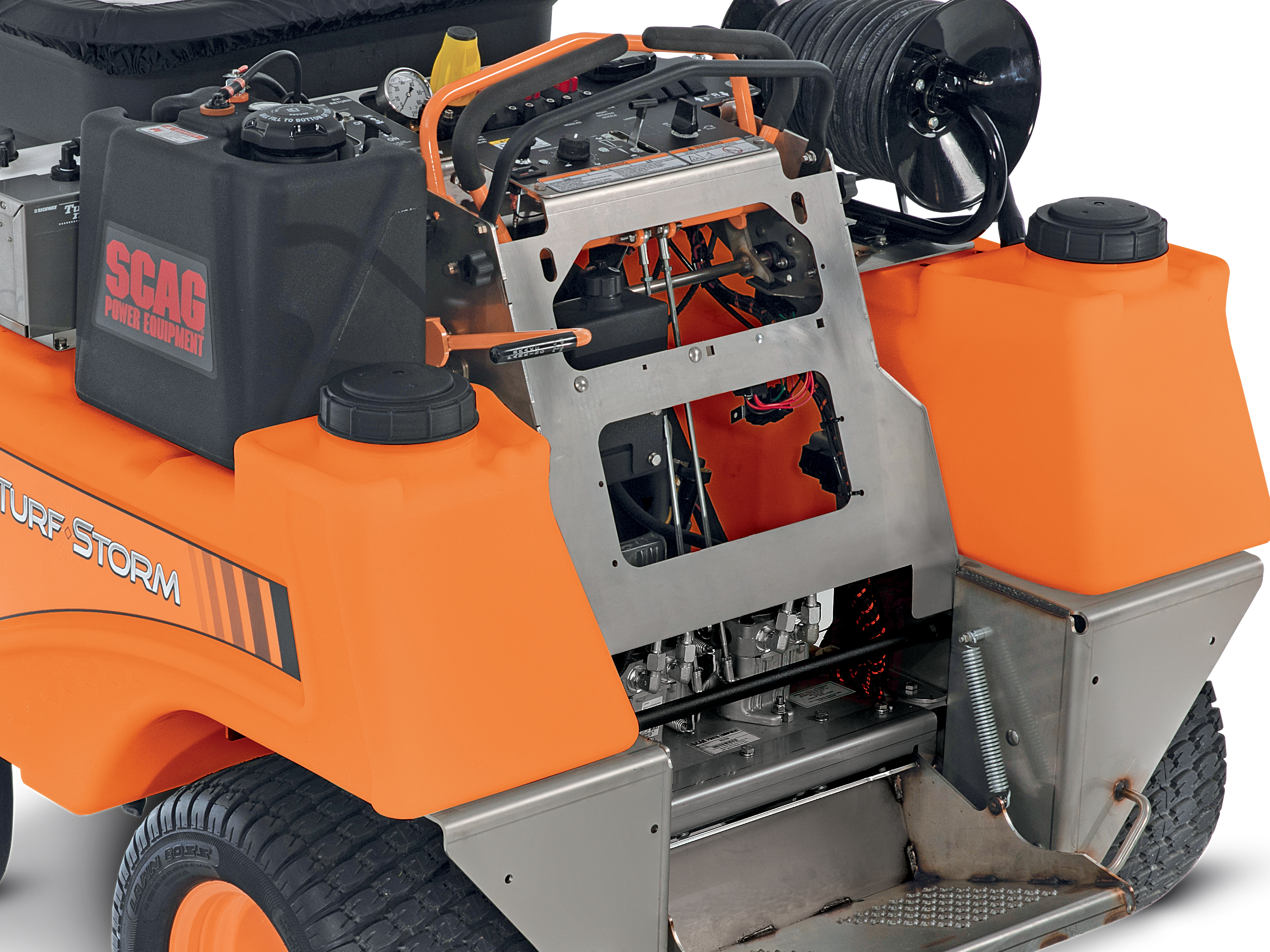

Easy Access

Make Maintenance A Breeze

Removable cushion and open lower area allow quick and easy service access to the hydro drive pumps, hydro reservoir and other mechanicals.

Turf Storm shown



Easy Access
Product SpecificationTurf Storm XLTurf Storm
Hopper Capacity220 lb120 lb
Spreader MotorHigh-Torque ElectricHigh-Torque Electric
Spread WidthUp to 25 ft.Up to 25 ft.
DeflectorMechanical Lever Activation of Stainless Steel DoorMechanical Lever Activation of Stainless Steel Door
Hopper CoverIncludedIncluded
* Dimensions are approximate

Pre-production unit shown in photos. Actual product may vary. Specifications subject to change.
Because we strive to continually improve our products, Scag reserves the right to make changes at any time without notice or obligation.

Product SpecificationTurf Storm XLTurf Storm
Spray Capacity60-gallon; Dual 30-gallon tanks.
High visibility tanks.
30-gallon; Dual 15-gallon tanks.
High visibility tanks.
Hinged Boom Arms8-foot wide, 5 nozzles65-inch wide, 4 nozzles
Spray Width2, 6, 8 or 10 ft2, 6 or 8 ft
Breakaway BoomsStandardStandard
Coil HoseHeavy duty, 75-foot high-pressure hose15-foot flex hose
Pump Capacity5 gpm; 7 gpm optional accessory5 gpm; 7 gpm optional accessory
* Dimensions are approximate

Pre-production unit shown in photos. Actual product may vary. Specifications subject to change.
Because we strive to continually improve our products, Scag reserves the right to make changes at any time without notice or obligation.

GENERALTurf Storm XLTurf Storm
ModelSTS60-23BVSTS30-23BV
Total Fuel Capacity5 gallons4.5 gallons
Front Wheel(s)16" x 6.5"-8", pneumatic16" x 6.5"-8", pneumatic
Rear Wheels20" x 12"-10", 4-ply20" x 7"-10", 4-ply

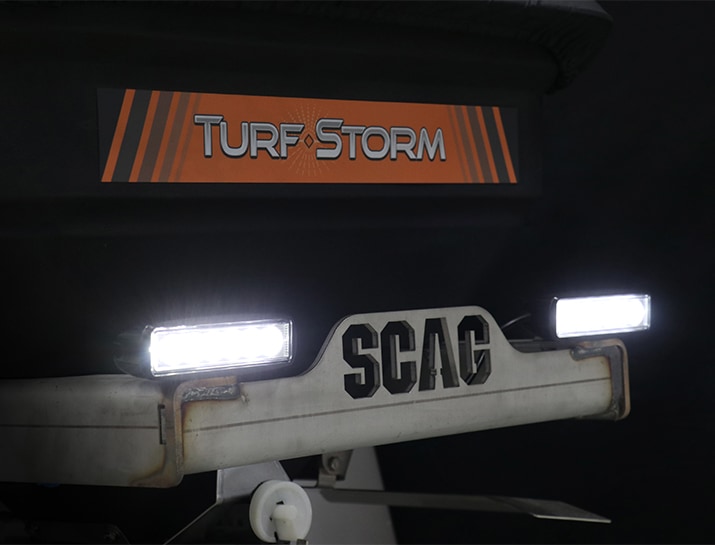

Currently Available AccessoriesFoamer Kit, LED Light Kit and 7 GPM pumpFoamer Kit, LED Light Kit and 7 GPM pump
ENGINE
EngineBriggs Vanguard™Briggs Vanguard™
Horsepower23 hp23 hp
Charging System12 Volt, 50 Amp12 Volt, 50 Amp
DRIVE SYSTEM
Drive SystemDual Pump and MotorDual Pump and Motor
PumpsHydro-Gear: PG Series 10 ccHydro-Gear: PG Series 10 cc
MotorsParker TG Series: 14.5ciParker TG Series: 14.5ci
Ground SpeedUp to 8.5 MPH forward
Up to 5 MPH reverse
Up to 8.5 MPH forward
Up to 5 MPH reverse
Parking BrakeHand LeverHand Lever
DIMENSIONS
Length67"65"
Width (spray booms in)54"35.5"
Width (spray booms out)82"65"
Height50"50"
Weight (dry)965 lb859 lb
Warranty2-Year Commercial & Non-Commercial Warranty; 90-day Rental2-Year Commercial & Non-Commercial Warranty; 90-day Rental
PRICING
MSRP$19,667$17,500

Pre-production unit shown in photos. Actual product may vary. Specifications subject to change.
Because we strive to continually improve our products, Scag reserves the right to make changes at any time without notice or obligation.

7gpm Pump
Foamer Accessory Kit

Accessory shown as example only. Actual appearance and/or placement of the accessory may vary by specific model.

Turf Storm XL & Turf Storm Accessories
