Windstorm

Windstorm
Play Video
NDS: Nozzle Direction System

180° Multi-Directional Air-Output Control at Your Fingertips

Scag’s exclusive NDS (Nozzle Direction System) provides unprecedented control of the air-discharge vertical tilt and horizontal rotation.

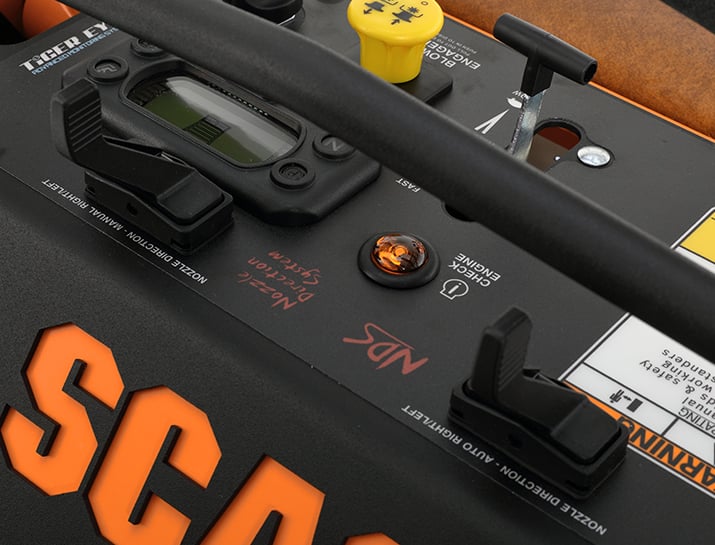

Fingertip Switches

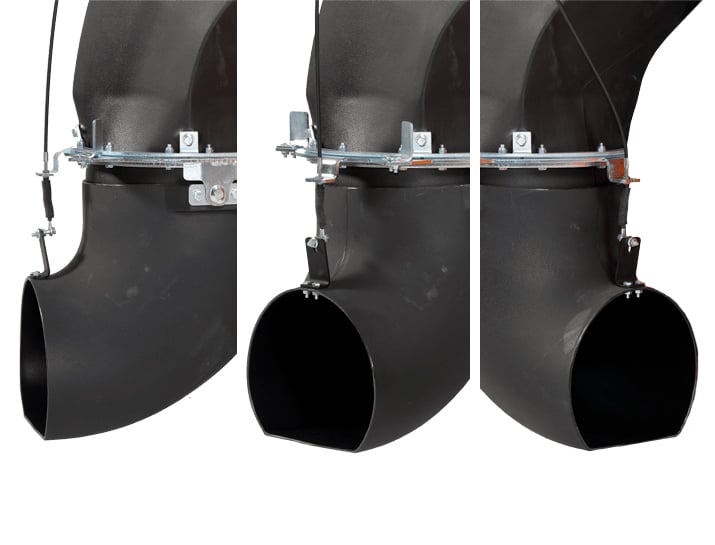

Dual Horizontal-Rotation Controls

Adjust the nozzle’s rotation up to 180 degrees using an Auto Left/Right Switch and a Fine-Tune Switch.



Convenient Manual Lever

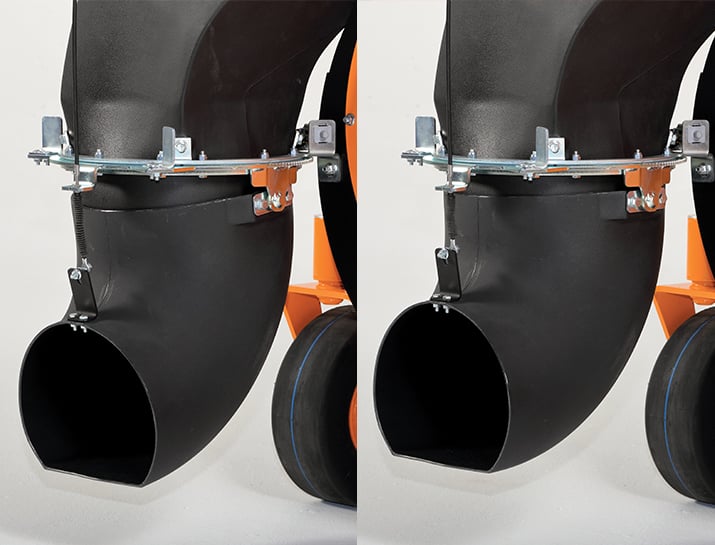

Vertical-Tilt Control

Adjust the tilt of the discharge nozzle up to 16 degrees: lower to help loosen and blast stubborn debris or higher to prevent blowback.

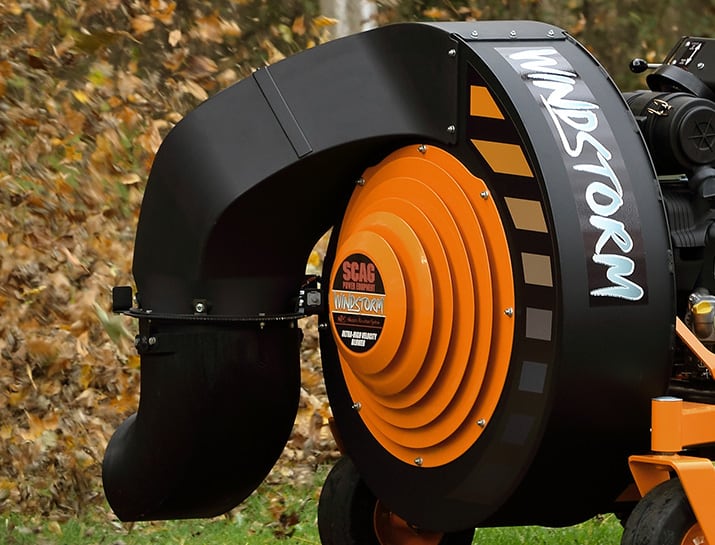

Massive Air Output

6,000 / 7,500 CFM

Massive air output of up to 6,000 effective CFM (Cubic Feet per Minute) (7,500 theoretical peak CFM) provides incredible ground-clearing force on a variety of surfaces and applications.

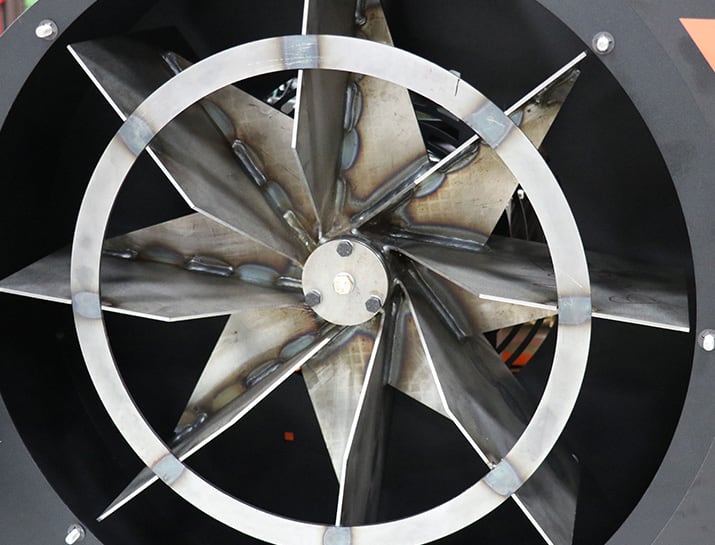

Fabricated and Balanced, 23", 8-Blade Impeller

Reliable Performance and Smooth Operation

Heavy-duty blower construction ensures years of dependable service and worry-free performance. The 23″ steel, 8-blade impeller is dynamically balanced for smooth operation. The impeller mounting utilizes a tapered locking hub.



Large, Dual Air Intake

Keep It Moving

Built with a front and rear air intake. Housing is aerodynamically designed to optimize intake without causing turbulence.

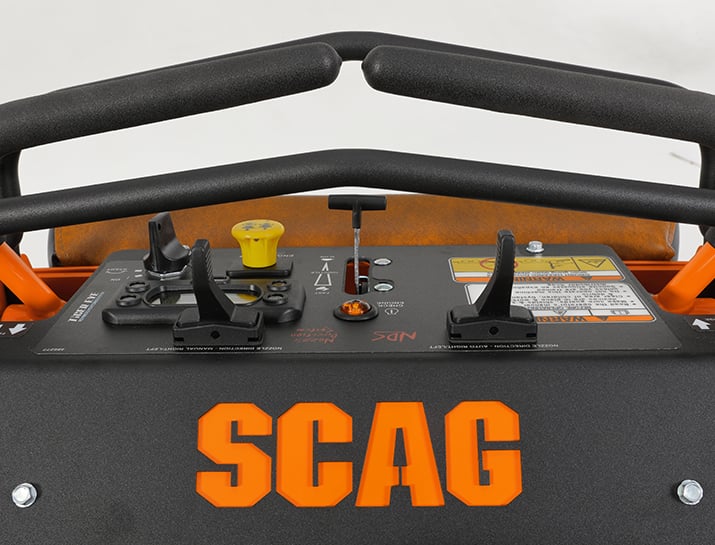

Controls and Instrument Panel

You're in Command

Proven, ergonomic drive-control lever’s design provides incredible ease-of-use. Instrument panel features NDS, ignition switch, PTO switch, throttle control, choke control and Scag’s exclusive Tiger Eye™ Advanced Monitoring System.



Operator Station

Extra-Large Comfort Cushion and Suspension Platform

With an extra-thick cushion for operator comfort, the coil-suspension operator platform delivers an unmatched, ultra-comfortable ride. Tie-down points are built in to quickly secure to a trailer. Removable cushion and lower panel allow for quick and easy service access. Convenient engine and hydraulic oil drains are located underneath.

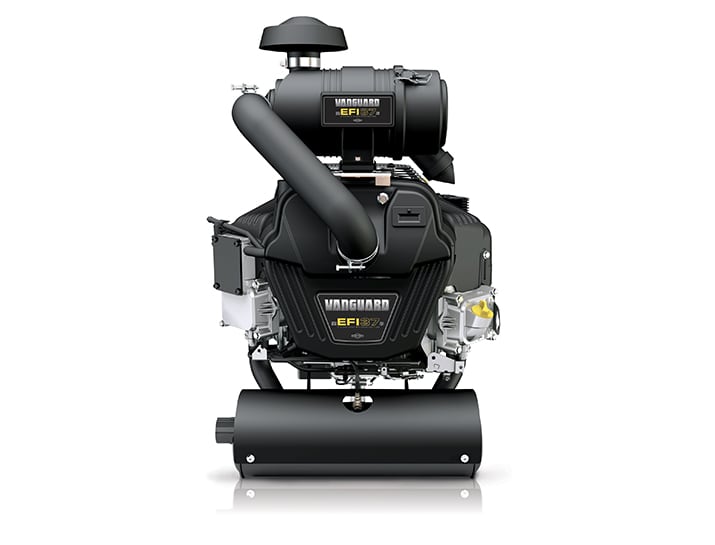

Powerful and Efficient Engine

Huge Power – 37 HP

Powered by a 37 hp Vanguard® BIG BLOCK™ EFI air-cooled engine for huge power, along with exceptional efficiency and dependable performance.




  • Specifications
Product SpecificationWindstorm
ModelWS23-37BV-EFI
Total Fuel Capacity8 Gallons
EngineBriggs Vanguard™ BIG BLOCK™ – electronic fuel injection
Horsepower37 HP
CFM OutputEffective CFM – 6,000

Theoretical Peak CFM – 7,500
Electric ClutchOgura GT3.5 (250 ft lb) with Softstart Electric Clutch Control
Frame ConstructionAll-steel, welded 10-gauge
Impeller ConstructionAll-steel, welded, 8-blade, dynamically balanced
Impeller MountingTapered locking hub
Impeller Diameter / Width23" / 8.5"
Blower Housing ConstructionAll-steel, welded, 12-gauge front and side housing plate and 10-gauge back housing plate
Blower Housing Width10"
Blower Tilt Angle16 degrees of total vertical tilt; 180 degrees of left/right horizontal rotation
Handlebarn/a
Vibration Controln/a
Discharge Opening69 square inches
Left / Right Discharge ControlNozzle Direction System offers up to 180 degrees of rotation.
Discharge Angle ControlYes – mechanical lever
Axlen/a
Front Wheel(s)13" x 5"-6", flat-free
Rear Wheels24" x 9.5"-12", 4-ply
AccessoriesLight Kit, Chrome Wheel Covers, Air Filter Monitor
Length71.5"
Width51"
Height47.25"
Weight943 lb
Warranty2-Year Commercial; 2-Year Residential; 90-day Rental
MSRP$11,689
