V-Ride XL

New Product Flag on a Cats Eye Gold Background
V-Ride XL

PRODUCTIVITY IN COMFORT

The V-Ride XL proves that it’s possible to be tough as nails and soft as a cloud. Its solid frame and expansive operator platform with an adjustable suspension to reduce vibration ensure you’re always riding in comfort no matter how big the job. Upgraded pumps and wheel motors are extra rugged and reliable, giving you confidence you’re always ready to tackle whatever comes your way.

Actual product may differ from photos.
V-Ride XL
V-Ride XL Logo
Results That Will Make Your Competitors Jealous

52", 61" OR 72" CUTTING WIDTH

The envy of the industry, Velocity Plus™ decks deliver an amazing quality-of-cut and a wide, even discharge on 52″, 61″ and 72″ widths.



Velocity Plus Cutter Deck
Ogura PTO Clutch Brake

STRONG, ADJUSTABLE CLUTCH FOR LONG LIFE

Provides excellent starting and stopping power for the cutter deck and an adjustable air gap for long life.



SCAG Ogura PTO Clutch Brake

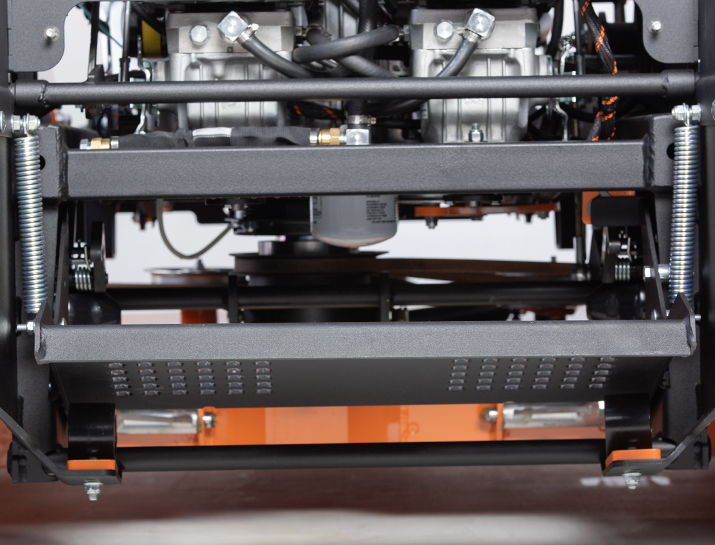

Adjustable Operator Platform

EXPERIENCE AN UNMATCHED, ULTRA-COMFORTABLE RIDE

Spacious operator platform with adjustable suspension delivers a smooth ride and reduces operator fatigue. Extra-large comfort cushion allows for comfortable operation, hour after hour. Adjustable platform suspension further enhances operator comfort.



Adjustable Operator Platform

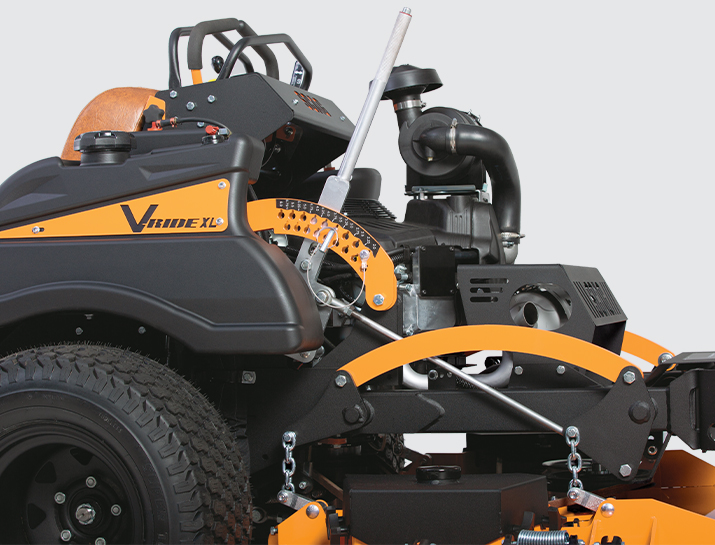

Cutter-Deck Lift System

CONVENIENT, SPRING-ASSISTED LEVER

Change cutting heights from 2-6″ in ¼” increments. Deck can be lifted from the operating position with the pull of a spring-assisted lever.



Cutter-Deck Lift System
High-Strength Steel Frame

SOLID DESIGN FOR YEARS OF DEPENDABLE SERVICE

Heavy-duty, single-tube, steel main-frame construction delivers superior strength and ensures years of trouble-free service. The front caster-wheel weldments are replaceable.



High-Strength Steel Frame

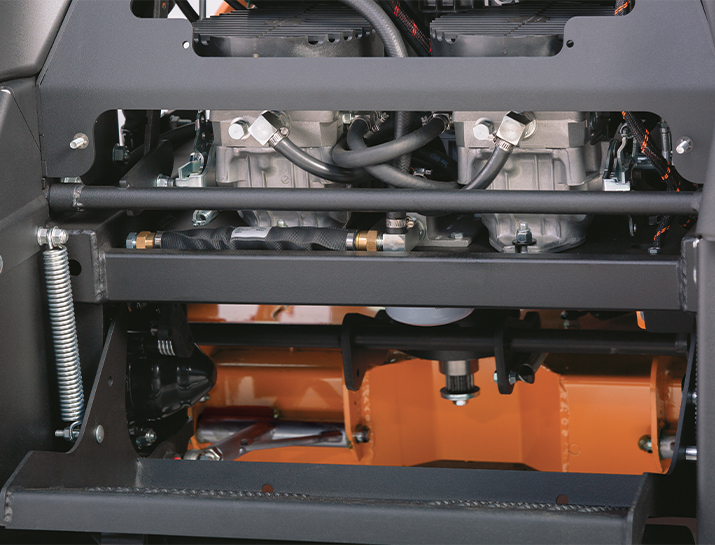

Industrial-Grade Hydraulic System

SPEEDS UP TO 11.6 MPH

Heavy-Duty Hydro-Gear pumps (16 cc) and high-torque Hydro-Gear wheel motors (18 ci) deliver dependable power, with speeds up to 11.6 mph. Pump shock valves ensure reliability and long life. Cooling fans help maintain safe operating temperatures.



Industrial-Grade Hydraulic System

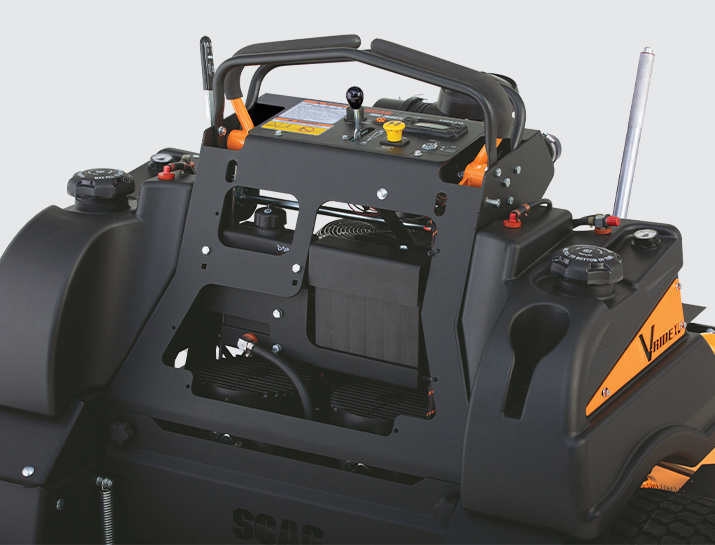

Ease of Maintenance

MORE UPTIME

Comfort cushion and lower panel are removable to allow quick and easy service access to the hydraulic system. This gives operators unrestricted engine compartment access for easy-to-reach grease Zerks and many more features, making servicing the V-Ride XL simple. Spend less time in the shop and more on the job.



Ease of Maintenance

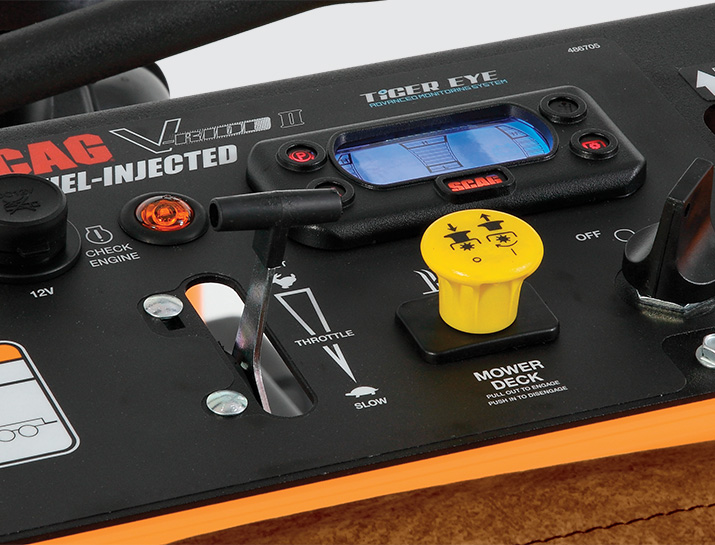

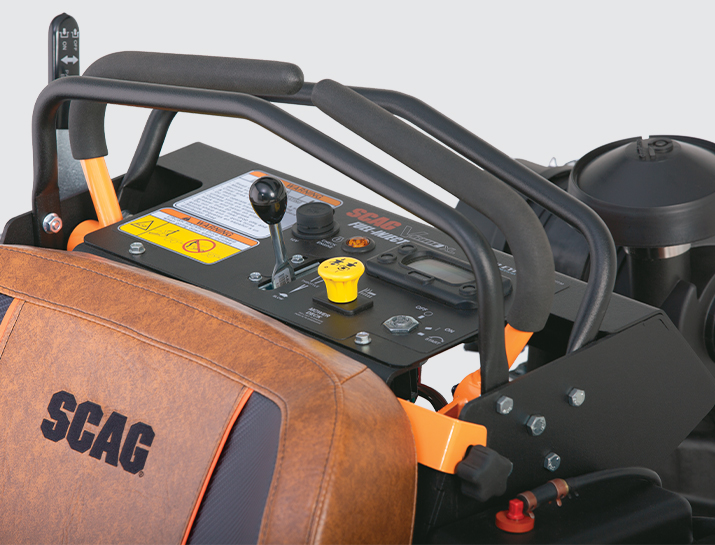

Tiger Eye Advanced Monitoring System

KEEP A REAL-TIME "EYE" ON IMPORTANT SYSTEM FUNCTIONS

The Tiger Eye™ Advanced Monitoring System monitors a wide variety of systems in real-time, giving you valuable information in just a glance, right from the operator’s seat. (Specific functions vary by mower model and engine.)



Tiger Eye Advanced Monitoring System
Powerful and Efficient Engine Options

HUGE POWER, UP TO 40 HP

Choose from Briggs & Stratton Vanguard®, Kawasaki® or Kohler engines; electronic fuel injection (EFI) is standard on all V-Ride XL models.



ModelDeck WidthEngineHorsepowerMSRP
SVRXL-52V-38FX-EFI52Kawasaki® FX – electronic fuel injection 38$14,420
SVRXL-52V-40BV-EFI52Briggs & Stratton Vanguard® – electronic fuel injection 40$14,445
SVRXL-61V-38CV61Kohler® Command PRO® CV – electronic fuel injection 38$14,875
SVRXL-61V-38FX-EFI61Kawasaki® FX – electronic fuel injection 38$15,017
SVRXL-61V-40BV-EFI61Briggs & Stratton Vanguard® – electronic fuel injection 40$15,112
SVRXL-72V-40BV-EFI72Briggs & Stratton Vanguard® – electronic fuel injection 40$15,800

Pre-production unit shown in photos. Actual product may vary. Specifications subject to change.
Because we strive to continually improve our products, Scag reserves the right to make changes at any time without notice or obligation.

Product Dimensions*52" V-Ride XL61" V-Ride XL72" V-Ride XL
Length70.5"73.5"76"
Tracking Width51.5"53.2"53.2"
Width (chute down)65.25"73.5"83"
Width (chute in transport position) 53.75"62.75"73.75"
Height47.75"47.75"47.75"
Weight1,150–1,179 lb1,201–1,266 lb1,264–1,293 lb
* Dimensions are approximate.

Pre-production unit shown in photos. Actual product may vary. Specifications subject to change.
Because we strive to continually improve our products, Scag reserves the right to make changes at any time without notice or obligation.

General
Total Fuel Capacity12 gallons
Drive Tires24" x 9.5"-12" (52")

24" x 12"-12" (61" and 72")
Caster Tires13" x 6.5"-6"
Drive System
Drive System TypeDual Pump & Motor
PumpsHydro-Gear 16 cc
MotorsHydro-Gear 18 ci
Forward Ground SpeedUp to 11.6 mph
Reverse Ground Speed5 mph
Parking BrakeHand lever
Deck
Cutting Widths52", 61" and 72"
TypeVelocity Plus™ cutter deck
Cutting Height2" to 6" in .25" increments
LiftHand lever
ConstructionTri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2" of steel. Reinforcement plates at cutter deck spindles.
SpindlesCast-iron housing with tapered roller bearings
Blade EngagementOgura 3.5 (250 ft lb)

Adjustable air-gap for extended lif

Pre-production unit shown in photos. Actual product may vary. Specifications subject to change.
Because we strive to continually improve our products, Scag reserves the right to make changes at any time without notice or obligation.

Dual-Wheel Kit The Dual-Wheel Kit accessory is only available for 72″ deck width models.

Accessory shown as example only. Actual appearance and/or placement of the accessory may vary by specific model.
