Velocity Plus Cutter Decks

48", 52" or 61" Cutting Width

The envy of the industry, Velocity Plus™ decks deliver an amazing quality-of-cut and a wide, even discharge on 48″, 52″ and 61″ widths. An Advantage Cutter Deck is featured on 32″ and 36″ widths.



Velocity Plus Cutter Deck
Ogura PTO Clutch Brake

Strong, Adjustable Clutch for Long Life

Provides excellent starting and stopping power for the cutter deck and an adjustable air gap for long life.



SCAG Ogura PTO Clutch Brake
Adjustable Operator Platform

Experience an Unmatched, Ultra-Comfortable Ride

The spacious operator platform delivers a smooth ride and reduces operator fatigue. Adjustable suspension spring can be moved forward or backward, with, or without, the spacer plate installed to meet the operator’s comfort preference. Extra-large, extra-thick operator comfort cushion ensures comfortable operation, hour after hour.



V-Ride Adjustable Suspension System
Cutter-Deck Lift System

Convenient, Spring-Assisted Lever

Cutter deck can be lifted and locked into transport position from the operator’s station. Cutting heights are easily set by placing the tethered pin at the desired height.



High-Strength Steel Frame

Solid Design for Years of Dependable Service

Heavy-duty, single-tube, steel main-frame construction delivers superior strength and ensures years of trouble-free service. The front caster-wheel weldments are replaceable.



Industrial-Grade Hydraulic System

Speeds Up To 10.5 MPH

48″, 52″ and 61″ models: Dual Hydro-Gear pumps (12 cc) and Parker wheel motors (14 ci) deliver dependable power, with speeds up to 10.5 mph. Pump shock valves ensure reliability and long life. Cooling fans help maintain safe operating temperatures.

32″ and 36″ models: Dual Hydro-Gear pumps (10 cc) and Parker wheel motors (12 ci) deliver dependable power, with speeds up to 8.5 mph.



Ease of Maintenance

More Uptime

Easy-to-remove covers, an unrestricted engine compartment, easy-to-reach grease Zerks and many more features make servicing the V-Ride™ II simple, so you can be in the shop less and on the job more.

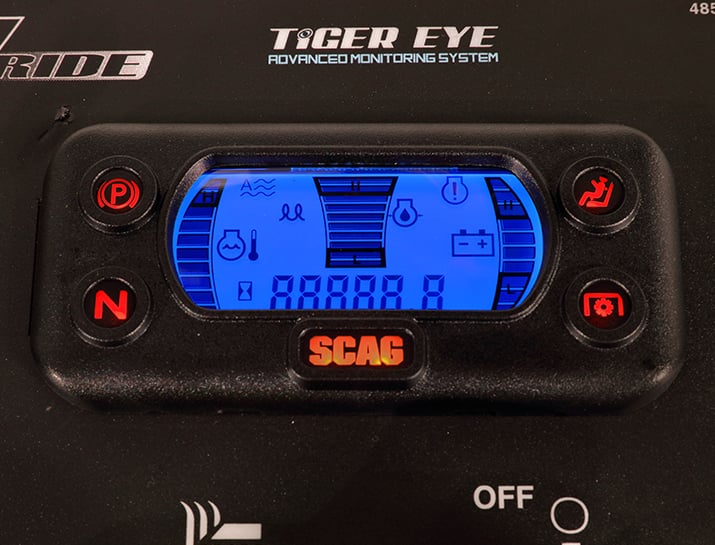

Tiger Eye Advanced Monitoring System

Keep a Real-Time "Eye" on Important System Functions

Depending on the mower model and engine selection, the Tiger Eye™ Advanced Monitoring System monitors a wide variety of systems in real-time, giving you valuable information in just a glance, right from the operator’s seat.

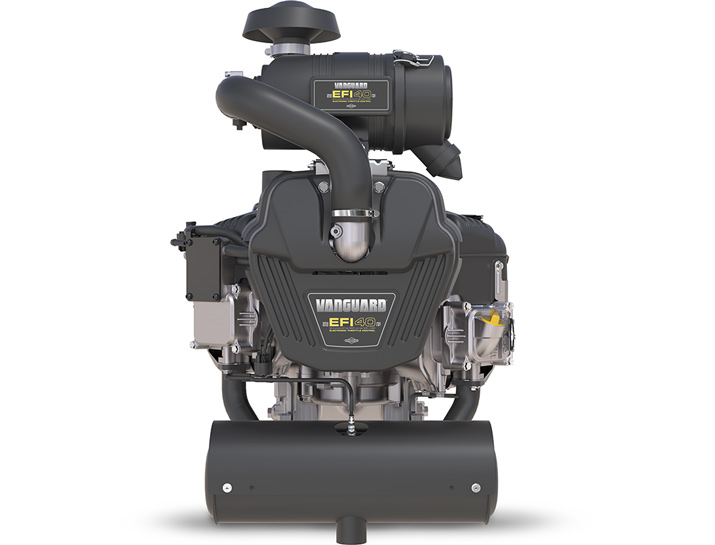

Powerful and Efficient Engine Options

Huge Power, Up To 38 HP

Choose from a Briggs Vanguard, Kawasaki® or Kohler® powerplants; electronic fuel injection (EFI) options are available.



Kawasaki FX EFI
  • Engine & Deck Combinations
  • Product Dimensions
  • Specifications
ModelDescriptionMSRP
SVRII-32A-16FX32" Advantage Cutter Deck, 16 HP Kawasaki® 541FX$8,914
SVRII-36A-19FX36" Advantage Cutter Deck, 19 HP Kawasaki® 600FX$9,239
SVRII-48V-22FX48" Velocity Plus™ Cutter Deck, 22 HP Kawasaki® 691FX$10,274
*SVRII-52V-25CV-EFI*52" Velocity Plus™ Cutter Deck, 25 HP Kohler® Command PRO®– electronic fuel injection*$9,997
SVRII-52V-26FT-EFI52" Velocity Plus™ Cutter Deck, 26 HP Kawasaki® 730FT– electronic fuel injection$10,665
SVRII-52V-37BV-EFI52" Velocity Plus™ Cutter Deck, 37 HP Briggs Vanguard™ BIG BLOCK™ EFI – electronic fuel injection$11,880
*SVRII-61V-25FX*61" Velocity Plus™ Cutter Deck, 25 HP Kawasaki® 801FX*$10,199
*SVRII-61V-29CV-EFI*61" Velocity Plus™ Cutter Deck, 29 HP Kohler® Command PRO®– electronic fuel injection*$9,833
*SVRII-61V-37BV-EFI*61" Velocity Plus™ Cutter Deck, 37 HP Briggs Vanguard™ BIG BLOCK™ EFI – electronic fuel injection*$11,417
SVRII-61V-38FX-EFI61" Velocity Plus™ Cutter Deck, 38 HP Kawasaki® FX1000 – electronic fuel injection$12,240
* Limited availability. Contact your local Scag dealer for specific availability information.
Product Dimensions32" V-Ride36" V-Ride48" V-Ride52" V-Ride61" V-Ride
Length65.25"65.25"67.5"69.5"72.75"
Tracking Width32"36"48"48"48"
Width (chute down)43"47.75"61.25"65.25"73.5"
Width (chute in transport position) 33.75"37.25"49.75"53.75"62.75"
Height47"47"47.25"47.25"47.25"
Weight818 lb832 lb1,015 lb1,000-1,022 lb1,127-1,173 lb
 SpecificationV-Ride
GeneralTotal Fuel Capacity5 gallons (32")

6.75 gallons (36")

8 gallons (48", 52", and 61")
Drive Tires20" x 6.5"-10" (32")

20" x 8"-10" (36")

24" x 9.5"-12" (48" and 52")

24" x 12"-12" (61")
Caster Tires11" x 4"-5" (32" and 36")

13" x 5"-6" (48" and 52")

13" x 6.5"-6" (61")
SeatExtra-large comfort cushion
Drive SystemDrive System TypeDual Pump and Motor
PumpsHydro-Gear 10 cc (32" and 36")

Hydro-Gear 12 cc (48", 52", and 61")
MotorsParker 12 ci (32" and 36")

Parker 14 ci (48", 52" and 61")
Forward Ground Speed8.5 mph (32" and 36")

10.5 mph (48", 52" and 61")
Reverse Ground Speed5 mph
Parking BrakeHand lever
DeckCutting Widths32", 36", 48", 52" and 61"
TypeAdvantage (32" and 36")

Velocity Plus™ (48", 52", and 61")
Cutting Height1.5" to 4.5" in .25" increments
Deck LiftHand lever
ConstructionTri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2" of steel. Reinforcement plates at cutter deck spindles.

32" model features dual-plate.
SpindlesCast-iron housing with tapered roller bearings.
Blade EngagementOgura GT2.5 (150 ft lb) – (32", 36", 48" and 52")

Ogura GT3.5 (250 ft lb) – (61")


Adjustable air-gap for extended life.

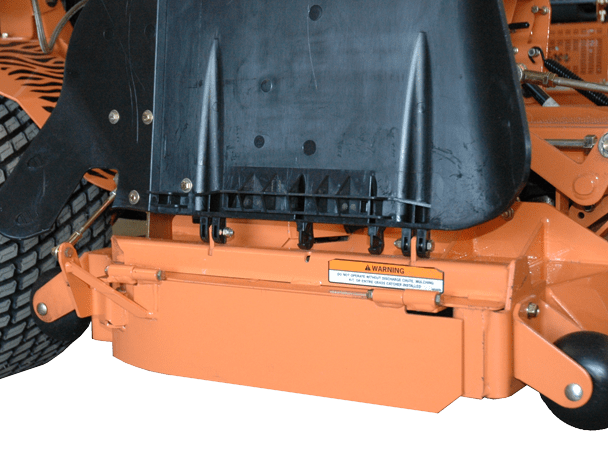

Scag V-Ride II Spindle-Driven Grass Catcher on V-Ride II

Accessory shown as example only. Actual appearance and/or placement of the accessory may vary by specific model.
