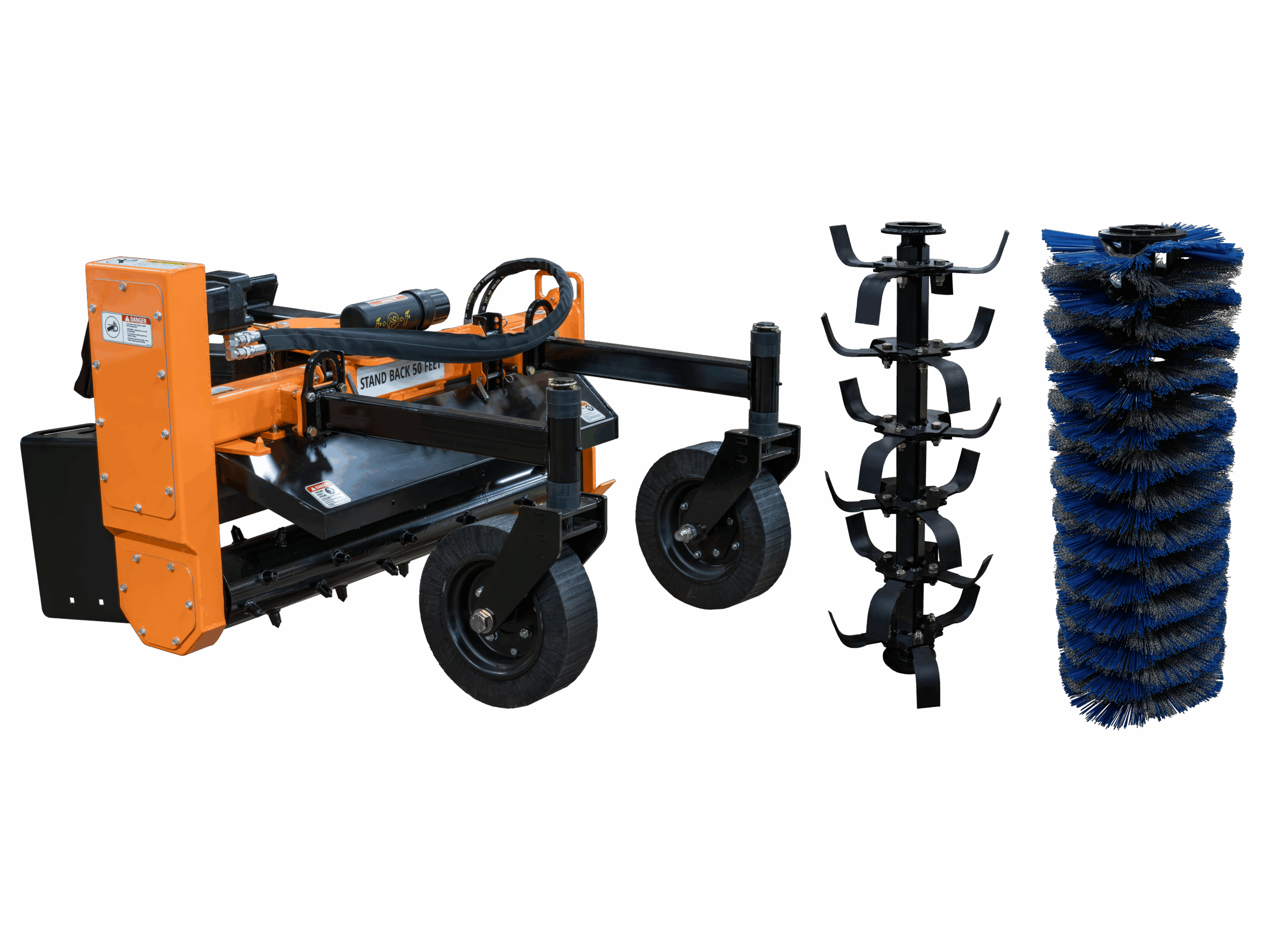

The Power Box Rake attachment is a multi-purpose powerhouse, equipping you to tackle a wide variety of jobs, all year-round. Unlike other “similar” products on the market, The Power Box Rake by Metalcraft of Mayville equips you with 3-in-1 versatility without having to purchase separate rotor accessories; they’re included!
Actual product may differ from photos.
Designed to prepare seedbeds, renovate old lawns, grade, level, rake, etc.

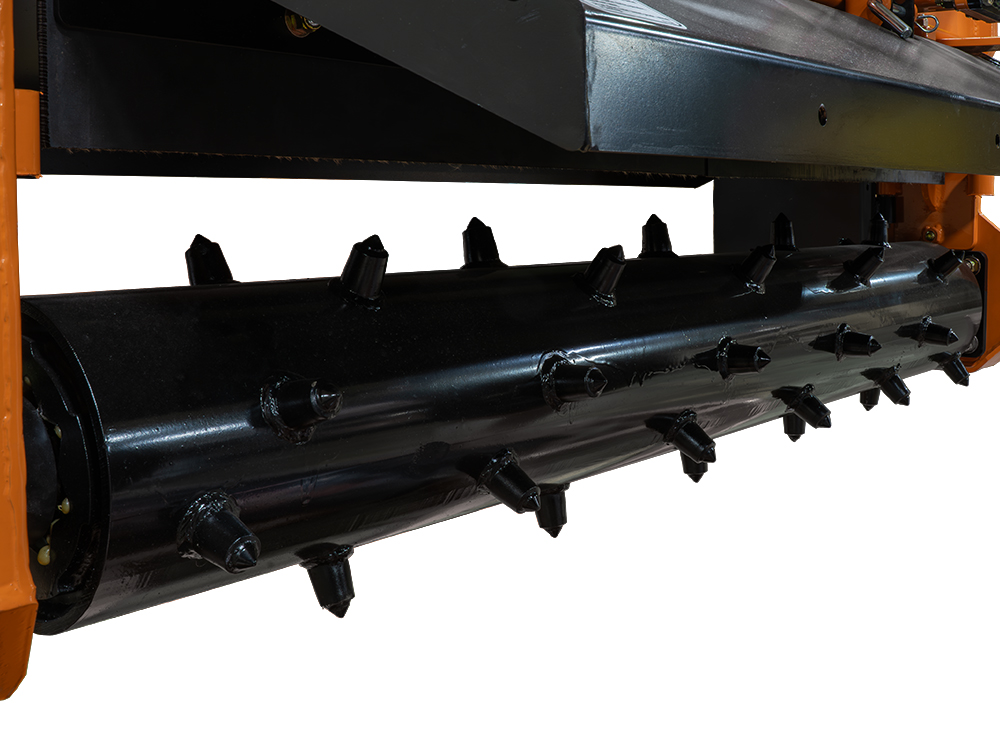

An ultra-productive tool with hardened boron steel and 24 dual-edge tines that will power through hard soil with ease.

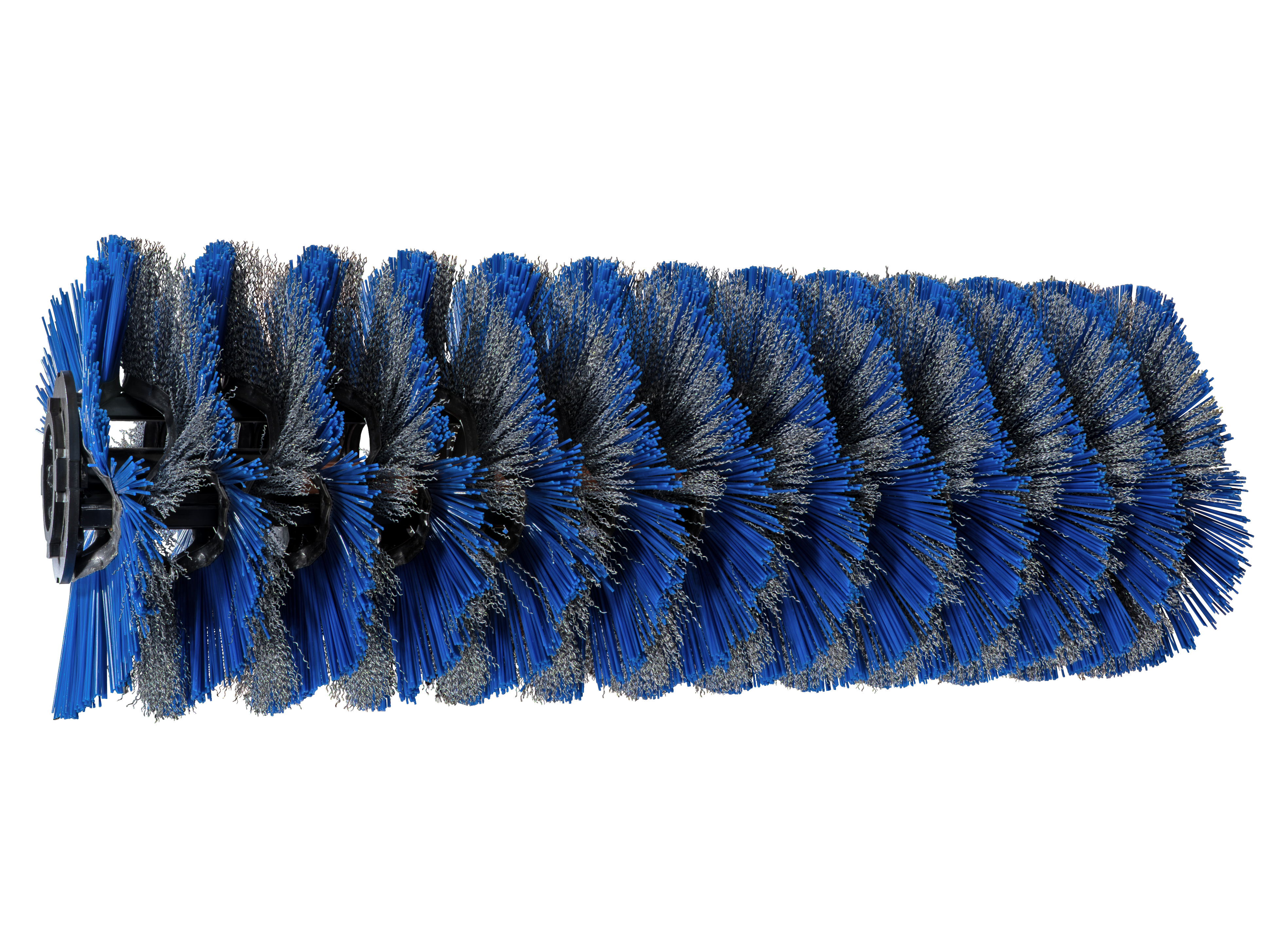

The Rotary Broom is great for clearing gravel, sand, dirt, snow and debris from sidewalks, parking lots, construction sites and more, as well as dethatching lawns and pavement seal prep.

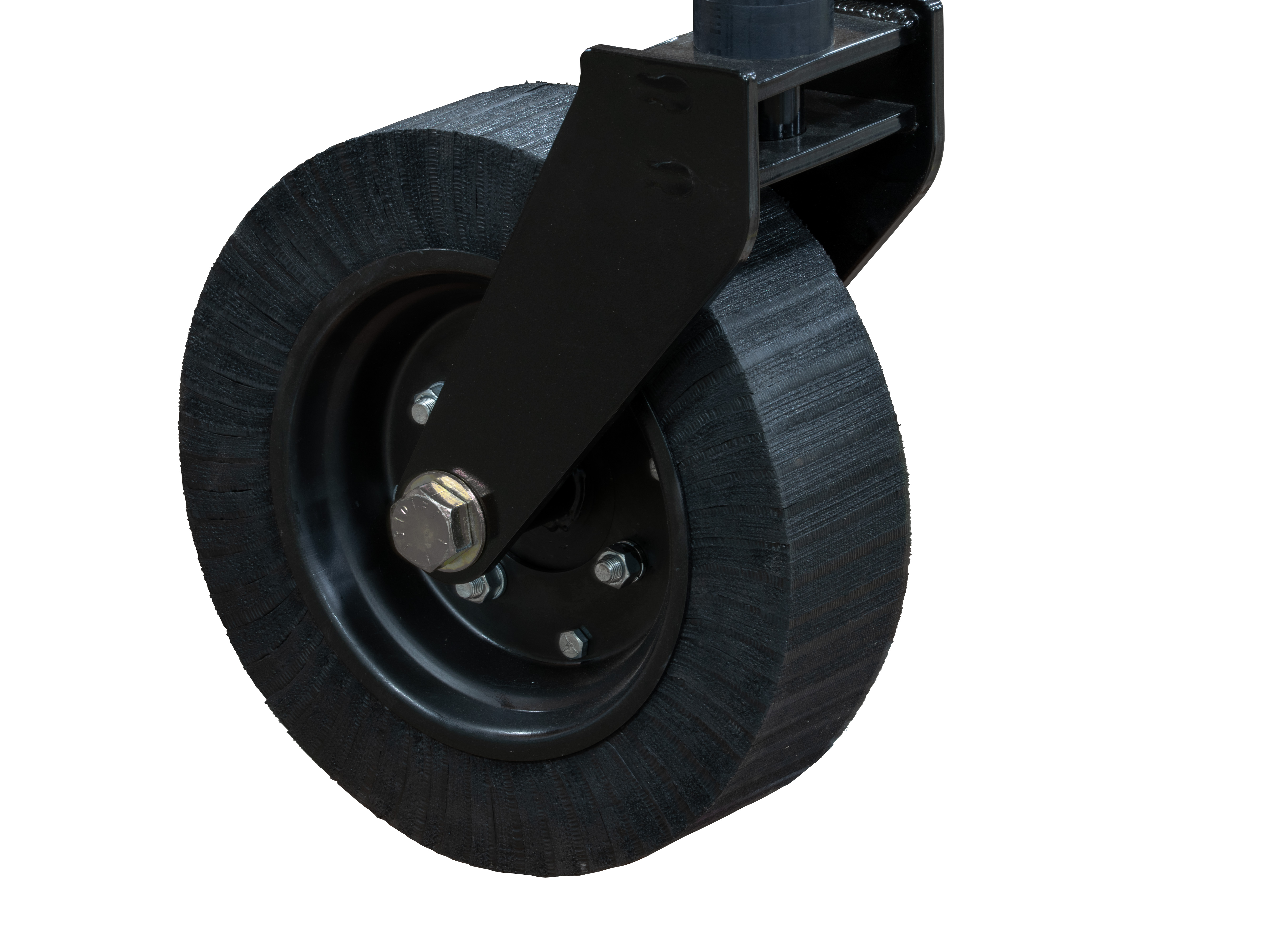

Dual, adjustable wheels allow for more precise depth control and better stability. Heavy-duty, “Flat-Free” laminated tires ensure worry-free performance, job after job.

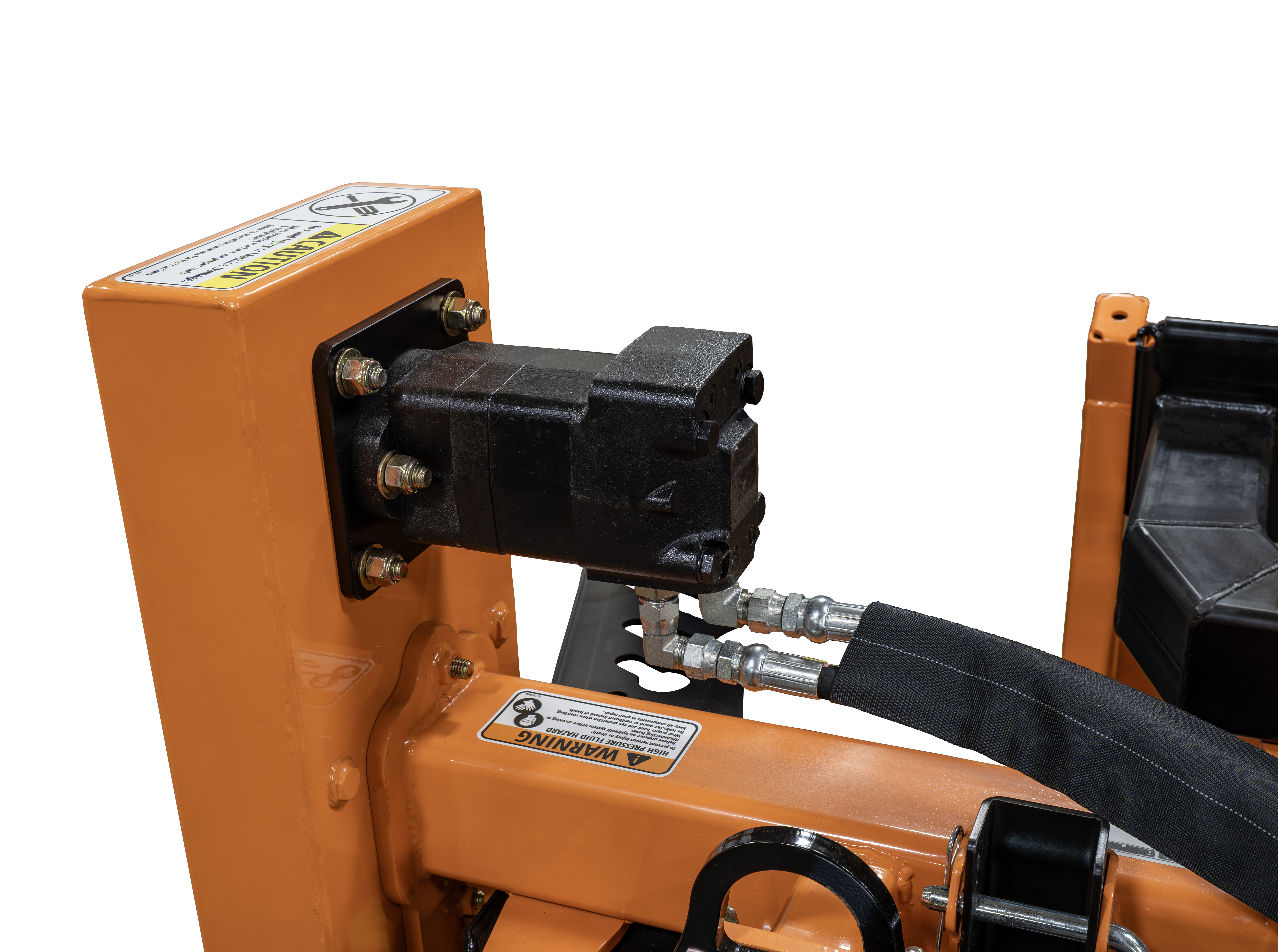

Bi-directional rotor engagement allows you to push or pull each attachment, depending on the requirements of each task.

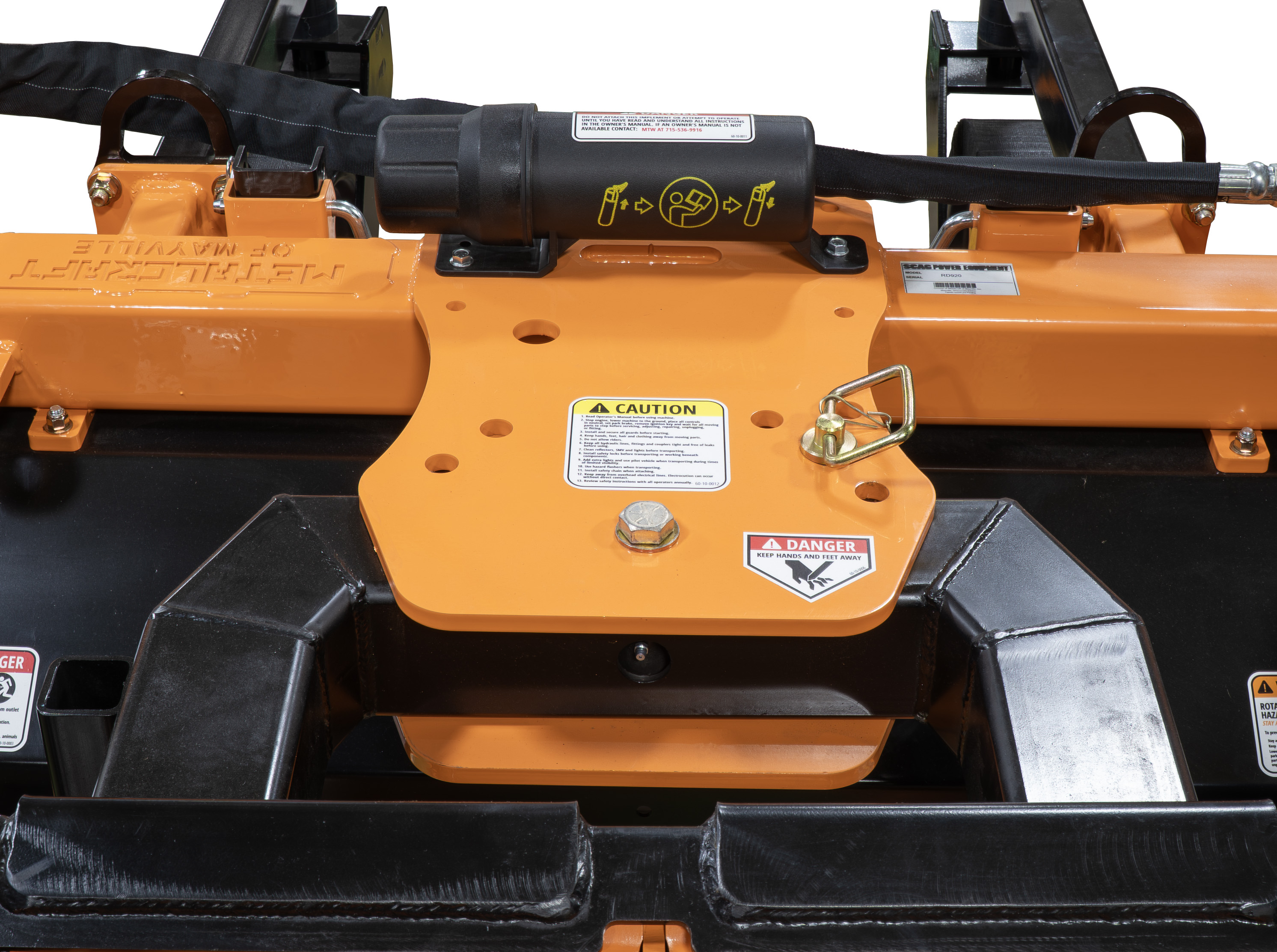

Manual rotor pivot allows adjustment of 0°, 10° or 20° in either direction to help push material to the side while clearing snow/ice, etc.
| Specifications | Power Rakes by Metalcraft of Mayville | ||
|---|---|---|---|
| Model | Power Rake – 9820Y | ||
| Height | 35″ | ||
| Length | 60”-70” (depending on wheel rotation/cut direction) | ||
| Overall Width | 60″ | ||
| Cut width | 48″ | ||
| Weight | 856 Lbs | ||
| Angle Settings | 0° | 10° | 20° |
| Mounting System | Universal-type mini | ||
| Mount plate | Grade 50 steel | ||
| Hydraulic drive | #80 roller chain Up to 20 gpm flow rate, up to 3,200 psi |
||
| MSRP | TBD | ||
| ROTORS | |||
| Type | Standard Drum Rotor | Rotary Broom | Rotary Tiller |
| Diameter | 6″ | 18″ | 16″ with tilling depth up to 5″ |
| Material | Carbide, abrasive resistant teeth | Polymer plastic, wire (alternating wafers) | Hardened boron steel |
| # of Teeth, Wafers, or Tines | Teeth: 42 | Polymer Wafers: 13 Wire Wafers: 12 | Dual-edge Tines: 24 |
| Construction and actual specifications depend on attachment model. Specifications and prices subject to change without notice. Because we strive to continually improve our products, Scag reserves the right to make changes at any time without notice or obligation. All models subject to availability. Contact your local Scag dealer for specific availability information. |
|||
